Portfolio Brief
Ceramic Fiber Blanket
Janta Overseas has an extensive experience in manufacturing and exporting Refractory Ceramic Fiber Blankets of the highest and most durable quality at competitive prices. Fiber Blanket is a fire resistant insulation material with integrated fire resistance, heat separation, and thermal insulation properties. It doesn't contain any binding agents. This blanket keeps its original soft fibrous structure to a maximum continuous temperature.
Our all Ceramic Fiber Blankets are made though spun fiber production, and the corresponding Fiber Bulk has the same excellent chemical stability, high room temperature strength and strength before and after heating, which is widely used in various sectors of refractory, insulation, thermal insulation field. It has a excellent acoustic and thermal insulation properties.

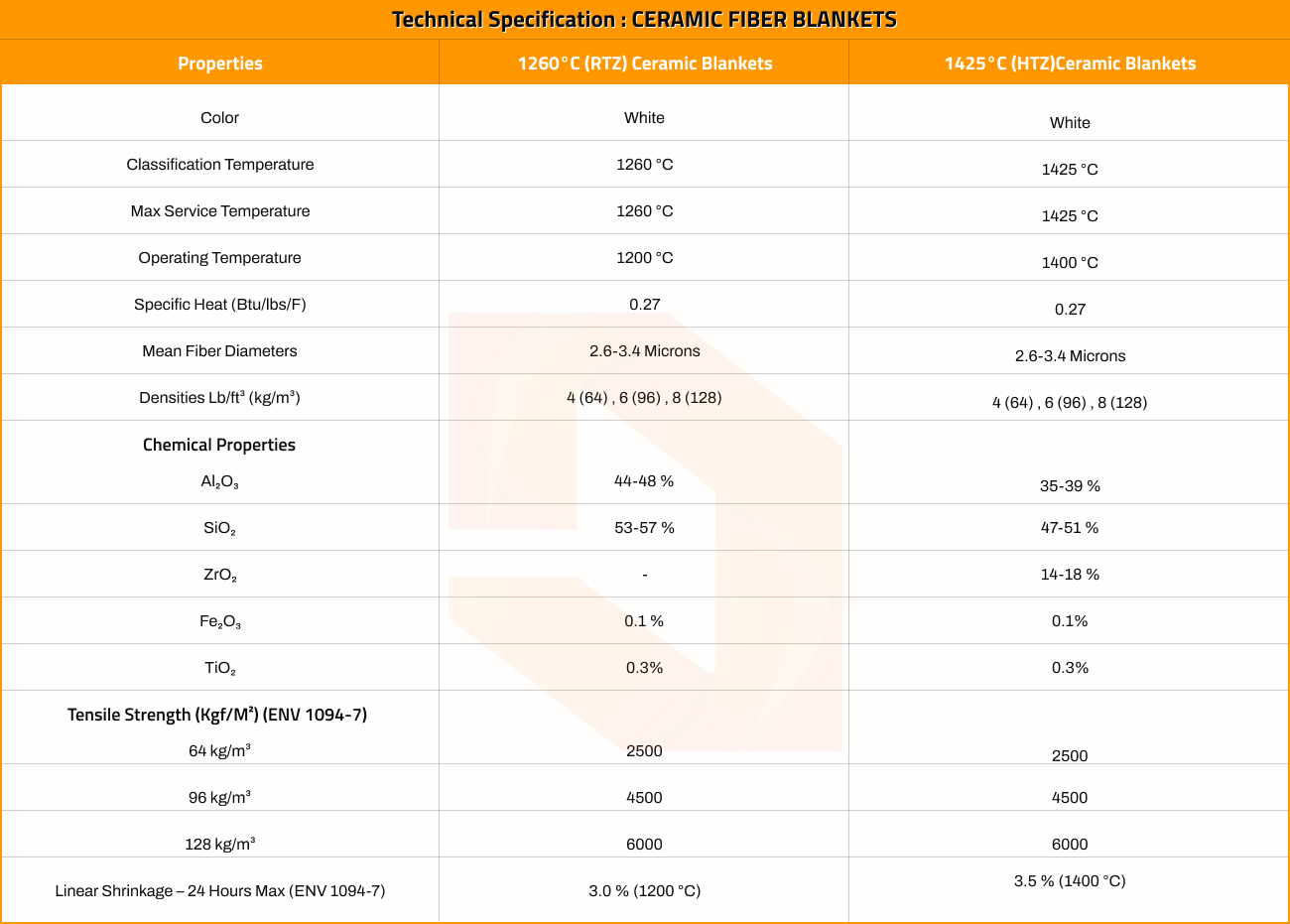

Technical Specification
Ceramic Fiber Blankets
Properties
1260°C (RTZ) Ceramic Blankets
1425°C (HTZ)Ceramic Blankets
Properties
Color
1260°C (RTZ) Ceramic Blankets
White
1425°C (HTZ)Ceramic Blankets
White
Properties
Classification Temperature
1260°C (RTZ) Ceramic Blankets
1260 °C
1425°C (HTZ)Ceramic Blankets
1425 °C
Properties
Max Service Temperature
1260°C (RTZ) Ceramic Blankets
1260 °C
1425°C (HTZ)Ceramic Blankets
1425 °C
Properties
Operating Temperature
1260°C (RTZ) Ceramic Blankets
1200 °C
1425°C (HTZ)Ceramic Blankets
1400 °C
Properties
Specific Heat (Btu/lbs/F)
1260°C (RTZ) Ceramic Blankets
0.27
1425°C (HTZ)Ceramic Blankets
0.27
Properties
Mean Fiber Diameters
1260°C (RTZ) Ceramic Blankets
2.6-3.4 Microns
1425°C (HTZ)Ceramic Blankets
2.6-3.4 Microns
Properties
Densities Lb/ft3 (kg/m3)
1260°C (RTZ) Ceramic Blankets
4 (64) , 6 (96) , 8 (128)
1425°C (HTZ)Ceramic Blankets
4 (64) , 6 (96) , 8 (128)
Properties
Chemical Properties
1425°C (HTZ)Ceramic Blankets
1425°C (HTZ)Ceramic Blankets
Properties
Chemical Properties
Al2O3
1260°C (RTZ) Ceramic Blankets
44-48 %
1425°C (HTZ)Ceramic Blankets
35-39 %
Properties
Chemical Properties
SiO2
1260°C (RTZ) Ceramic Blankets
53-57 %
1425°C (HTZ)Ceramic Blankets
47-51 %
Properties
Chemical Properties
ZrO2
1260°C (RTZ) Ceramic Blankets
-
1425°C (HTZ)Ceramic Blankets
14-18 %
Properties
Chemical Properties
Fe2O3
1260°C (RTZ) Ceramic Blankets
0.1 %
1425°C (HTZ)Ceramic Blankets
0.1%
Properties
Chemical Properties
TiO2
1260°C (RTZ) Ceramic Blankets
0.3%
1425°C (HTZ)Ceramic Blankets
0.3%
Properties
Tensile Strength (Kgf/m2) (ENV 1094-7)
1425°C (HTZ)Ceramic Blankets
1425°C (HTZ)Ceramic Blankets
Properties
Tensile Strength (Kgf/m2) (ENV 1094-7)
64 kg/m3
1260°C (RTZ) Ceramic Blankets
2500
1425°C (HTZ)Ceramic Blankets
2500
Properties
Tensile Strength (Kgf/m2) (ENV 1094-7)
96 kg/m3
1260°C (RTZ) Ceramic Blankets
4500
1425°C (HTZ)Ceramic Blankets
4500
Properties
Tensile Strength (Kgf/m2) (ENV 1094-7)
128 kg/m3
1260°C (RTZ) Ceramic Blankets
6000
1425°C (HTZ)Ceramic Blankets
6000
Properties
Tensile Strength (Kgf/m2) (ENV 1094-7)
Linear Shrinkage – 24 Hours Max (ENV 1094-7)
1260°C (RTZ) Ceramic Blankets
3.0 % (1200 °C)
1425°C (HTZ)Ceramic Blankets
3.5 % (1400 °C)
All data represents typical results of standard tests conducted under controlled conditions. As such, the information is intended only as a general guide for specifications and product estimates.
Technical Specification

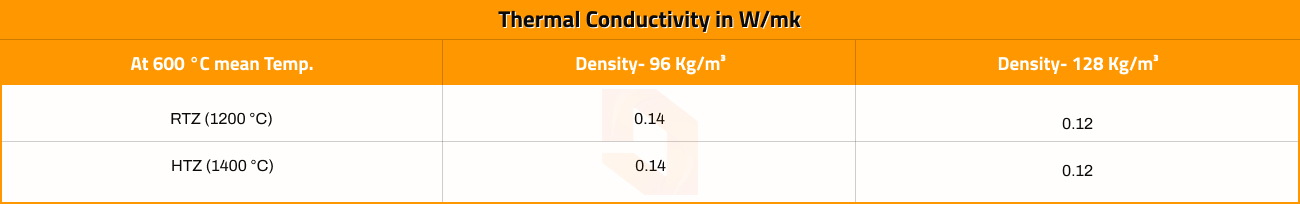

Thermal Conductivity in W/mk
At 600 °C mean Temp.
Density- 96 Kg/m3
Density- 128 Kg/m3
At 600 °C mean Temp.
RTZ (1200 °C)
Density- 96 Kg/m3
0.14
Density- 128 Kg/m3
0.12
At 600 °C mean Temp.
HTZ (1400 °C)
Density- 96 Kg/m3
0.14
Density- 128 Kg/m3
0.12
Availability
Sizes
7300x610x13 mm
7300x610x13 mm
7300x610x25 mm
3650x610x50 mm
Densities
64, 96 & 128 kg/m3
Grades
1260 0C & 1425 0C.
Features
- Excellent Chemical Stability
- Excellent Thermal Stability
- Excellent Tensile Strength
- Low Thermal Conductivity
- Low Heat Capacity
- Excellent Insulation Properties
- Good Sound Insulation
Application
- Industrial Furnace Wall Lining
- Back Lining Material
- Furnace Masonry Expansion Joints, Door, Roof Heat Insulation Seal
- High Temperature Pipe Insulation Material
- Module / Folded Module Processing Material
- Fireproof Coating
