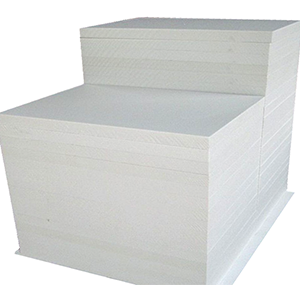

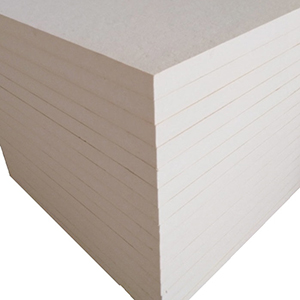

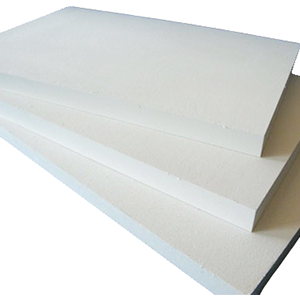

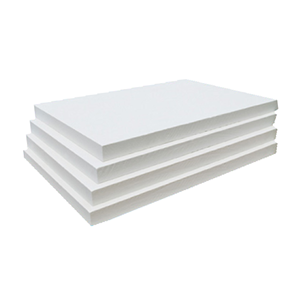

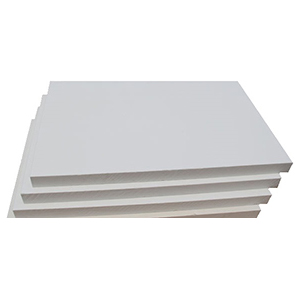

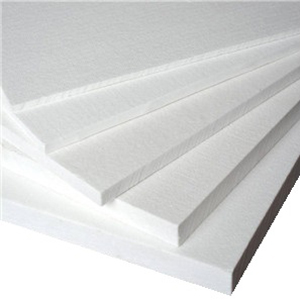

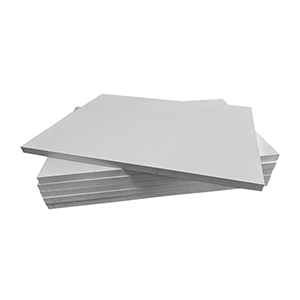

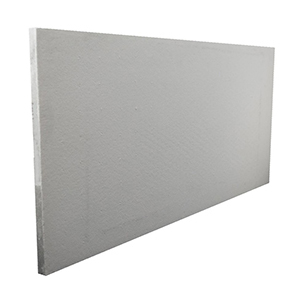

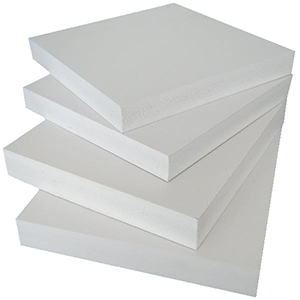

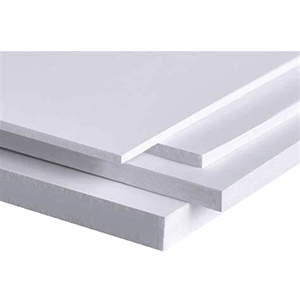

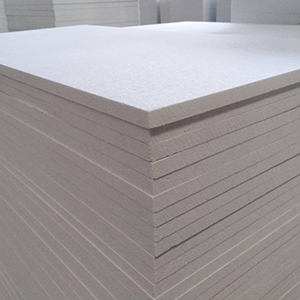

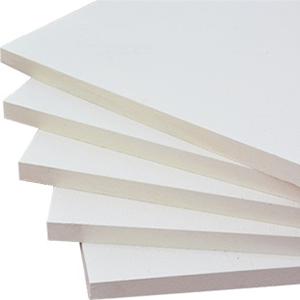

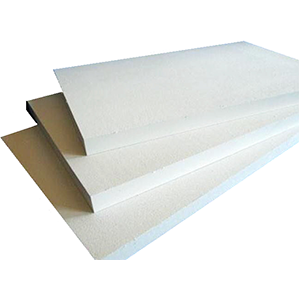

Ceramic Fiber Boards
Ceramic Fiber board is manufactured and designed for the thermal applications which request a high demand on rigidity, light weight and low thermal conductivity. The thermal insulation properties and abrasion resistance of Ceramic Fiber Board have been further improved due to the higher density. Ceramic Fiber Board is a vacuum formed product that resists higher gas velocities than ceramic Fiber Blanket. Ceramic fibre boards are very versatile, they are best for use when a rigid, insulating and self-supporting product is needed. It is ideal for furnaces, boiler duct and stack lining.
Ceramic Fiber Boards have a low thermal conductivity and low heat storage, which makes the shorter cycle times and quicker access for maintenance in the industrial furnaces possible.

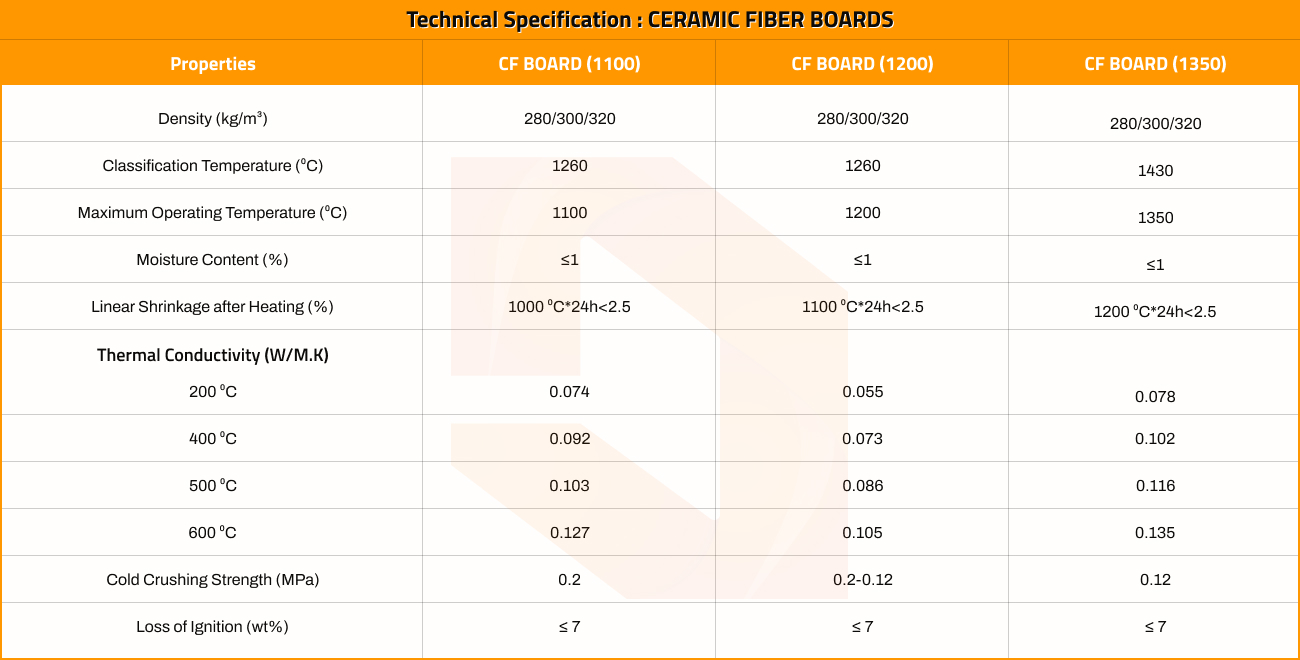

Technical Specification
Ceramic Fiber Boards
Properties
CF BOARD (1100)
CF BOARD (1200)
CF BOARD (1350)
Properties
Density (kg/m3)
CF BOARD (1100)
280/300/320
CF BOARD (1200)
280/300/320
CF BOARD (1350)
280/300/320
Properties
Classification Temperature (0C)
CF BOARD (1100)
1260
CF BOARD (1200)
1260
CF BOARD (1350)
1430
Properties
Maximum Operating Temperature (0C)
CF BOARD (1100)
1100
CF BOARD (1200)
1200
CF BOARD (1350)
1350
Properties
Moisture Content (%)
CF BOARD (1100)
≤1
CF BOARD (1200)
≤1
CF BOARD (1350)
≤1
Properties
Linear Shrinkage after Heating (%)
CF BOARD (1100)
1000 0C*24h<2.5
CF BOARD (1200)
1100 0C*24h<2.5
CF BOARD (1350)
1200 0C*24h<2.5
Properties
Thermal Conductivity (W/m.k)
CF BOARD (1100)
CF BOARD (1200)
CF BOARD (1350)
Properties
Thermal Conductivity (W/m.k)
200 0C
CF BOARD (1100)
0.074
CF BOARD (1200)
0.055
CF BOARD (1350)
0.078
Properties
Thermal Conductivity (W/m.k)
400 0C
CF BOARD (1100)
0.092
CF BOARD (1200)
0.073
CF BOARD (1350)
0.102
Properties
Thermal Conductivity (W/m.k)
500 0C
CF BOARD (1100)
0.103
CF BOARD (1200)
0.086
CF BOARD (1350)
0.116
Properties
Thermal Conductivity (W/m.k)
600 0C
CF BOARD (1100)
0.127
CF BOARD (1200)
0.105
CF BOARD (1350)
0.135
Properties
Thermal Conductivity (W/m.k)
Cold Crushing Strength (MPa)
CF BOARD (1100)
0.2
CF BOARD (1200)
0.2-0.12
CF BOARD (1350)
0.12
Properties
Thermal Conductivity (W/m.k)
Loss of Ignition (wt%)
CF BOARD (1100)
≤ 7
CF BOARD (1200)
≤ 7
CF BOARD (1350)
≤ 7
All data represents typical results of standard tests conducted under controlled conditions. As such, the information is intended only as a general guide for specifications and design estimates.
Availability
Densities
220/240/280/300/320 kg/m3
Grades
1050 0C & 1260 0C & 1430 0C.
Board Sizes (With Thicknesses 12,25,50,100 mm):
1000x500 mm
1000x500 mm
1000x600 mm
900x600 mm
1200x600 mm
1200x500 mm
Features
- High Rigidity And Light Weight
- Low Thermal Conductivity
- Resistance To Thermal Shock And Gas Erosion
- Resists Most Chemical Attacks.
- Easy Cutting And Engineering, Mechanical Flexibility
- Resists Penetration By Molten Aluminium And Other Non-Ferrous Metals.
- Contains No Asbestos
Application
- Refractory Lining For Industrial Furnaces
- Combustion Chamber Liner, Boilers And Heaters
- Back-Up Insulation For Monolithic Refractories
- Transfer Of Non-Ferrous Metals
- Expansion Joint Boards
- Barrier Against Flame Or Heat
- Hot Face Layer For High Velocity Or Abrasive Furnace Atmosphere
