Ceramic Fiber Module

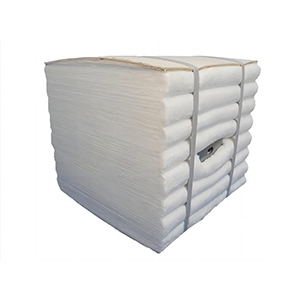

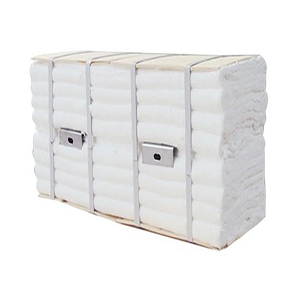

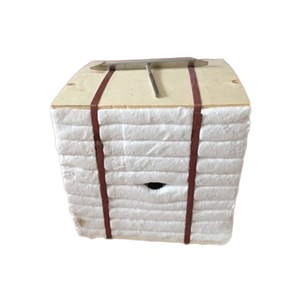

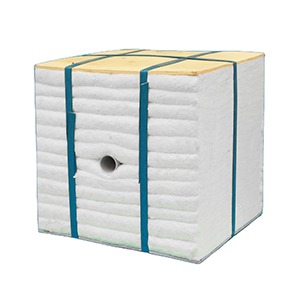

Ceramic Fiber Module is a refractory lining product which are used for simplifying and speeding up the furnace construction and improving the lining integrity. This product is a ceramic fiber blankets which are stacked or folded to form a normal size module, and it can be directly fixed on the anchor bolt of industrial furnace steel sheet, with a good fireproof and thermal insulation, which increase the furnace refractory insulation integrity and improve the furnace lining technology.

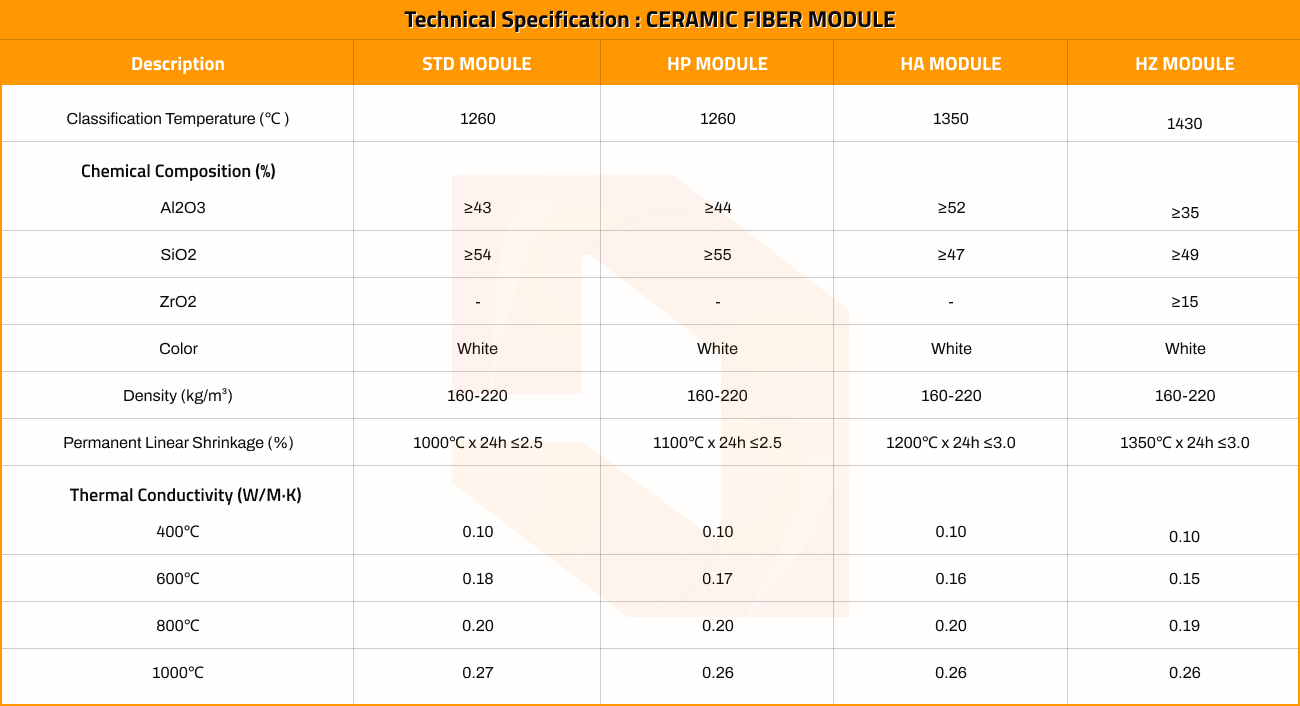

Technical Specification
Ceramic Fiber Module
Description
STD MODULE
HP MODULE
HA MODULE
HZ MODULE
Description
Classification Temperature (℃ )
STD MODULE
1260
HP MODULE
1260
HA MODULE
1350
HZ MODULE
1430
Description
Chemical Composition (%)
STD MODULE
HP MODULE
HA MODULE
HZ MODULE
Description
Chemical Composition (%)
Al2O3
STD MODULE
≥43
HP MODULE
≥44
HA MODULE
≥52
HZ MODULE
≥32
Description
Chemical Composition (%)
SiO2
STD MODULE
≥54
HP MODULE
≥55
HA MODULE
≥47
HZ MODULE
≥49
Description
Chemical Composition (%)
ZrO2
STD MODULE
-
HP MODULE
-
HA MODULE
-
HZ MODULE
≥15
Description
Chemical Composition (%)
Color
STD MODULE
White
HP MODULE
White
HA MODULE
White
HZ MODULE
White
Description
Chemical Composition (%)
Density (kg/m³)
STD MODULE
160-220
HP MODULE
160-220
HA MODULE
160-220
HZ MODULE
160-220
Description
Chemical Composition (%)
Permanent Linear Shrinkage (%)
STD MODULE
1000℃ x 24h ≤2.5
HP MODULE
1100℃ x 24h ≤2.5
HA MODULE
1200℃ x 24h ≤2.5
HZ MODULE
1350℃ x 24h ≤2.5
Description
Thermal Conductivity (W/m·K)
STD MODULE
HP MODULE
HA MODULE
HZ MODULE
Description
Thermal Conductivity (W/m.k)
400 0C
STD MODULE
0.10
HP MODULE
0.10
HA MODULE
0.10
HZ MODULE
0.10
Description
Thermal Conductivity (W/m.k)
600 0C
STD MODULE
0.18
HP MODULE
0.17
HA MODULE
0.16
HZ MODULE
0.15
Description
Thermal Conductivity (W/m.k)
800 0C
STD MODULE
0.20
HP MODULE
0.20
HA MODULE
0.20
HZ MODULE
0.19
Description
Thermal Conductivity (W/m.k)
1000 0C
STD MODULE
0.27
HP MODULE
0.26
HA MODULE
0.26
HZ MODULE
0.26
All data represents typical results of standard tests conducted under controlled conditions. As such, the information is intended only as a general guide for specifications and design estimates.
Availability
Standard Size
300x300x300 mm
Temperature Grade
1260 0C & 14300C.
The modules can be customized with sizes and densities upon request.
Features
- High Temperature Resistance The maximum operating temperature of ceramic fiber modules is 1430°C, making them ideal for high temperature applications.
- Low Thermal Conductivity Ceramic fiber modules have low thermal conductivity, and they can effectively isolate areas with high heat transfer rates.
- Excellent Thermal Shock Resistance Ceramic fiber modules can withstand sudden temperature changes without cracking or breaking, allowing for reliable and long-lasting use.

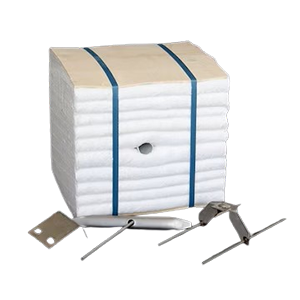

- Easy Installation Ceramic fiber modules can be easily installed using various anchoring systems.
Application
- High-Temperature Furnace Ceramic fiber modules are usually used for heat insulation in high-temperature furnaces in steel, glass, ceramics and other industries.
- Fire Resistant Lining Ceramic fiber modules are the perfect choice for lining fire-resistant walls, roofs and doors a variety of industrial applications.
- Furnace Lining And Insulation Of Furnace In Metallurgical Industry.
- Furnace Lining And Insulation Of Heat Treatment Furnace In Heat Treatment Circle.
