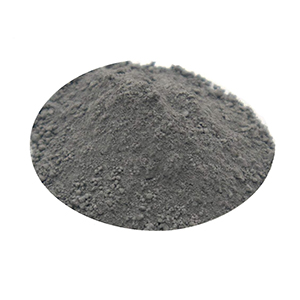

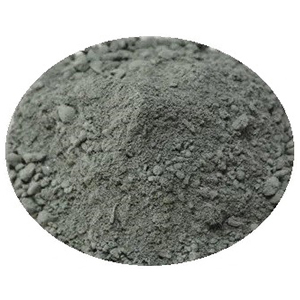

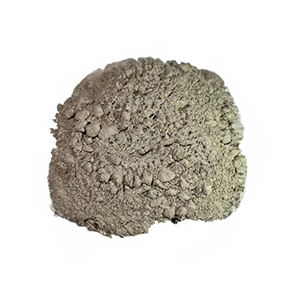

Dense Refractory Castables

Janta Overseas specializes in the production of High-Alumina Dense Castables by utilizing raw materials like calcined fireclay, refractory binders, and cements, as well as imported or outsourced materials. These castables are suitable for applications up to 1700°C.

Dense Refractory Castables exhibits a bulk density exceeding 2.15 gm/cm³ , it has a good construction performance and high strength mechanical properties. At higher temperatures, this castable demonstrates exceptional resistance to thermal shock and abrasion.

Industrial applications extensively utilize Dense Refractory Castables, whose classification is based on the percentage of alumina and purity, which directly influencing their heat resistance and overall performance. The alumina content is critical, conferring high-temperature strength and corrosion resistance. High purity is desirable to minimize adverse effects on performance.

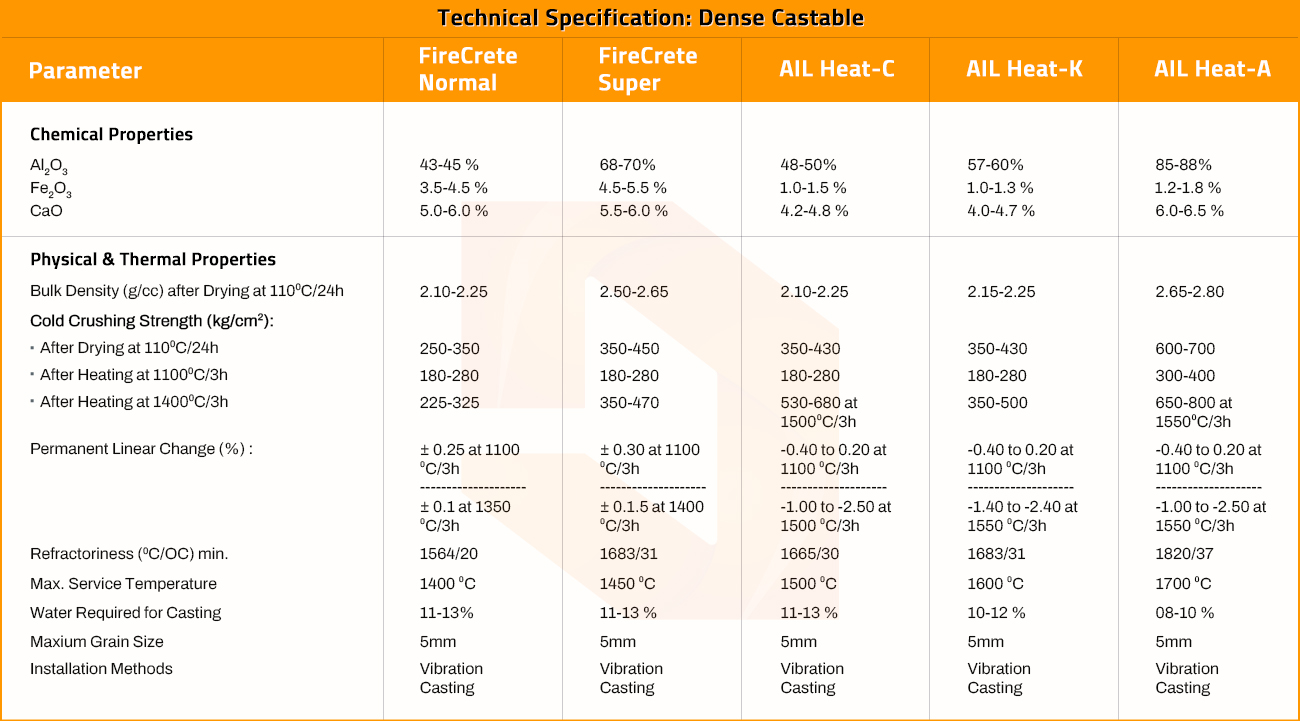

Technical Specification

Dense Refractory Castables

FireCrete Normal

FireCrete Super

AIL Heat-C

AIL Heat-K

AIL Heat-A

Chemical Properties

Chemical Properties

Al2O3

FireCrete Normal

43-45 %

FireCrete Super

68-70%

AIL Heat-C

48-50 %

AIL Heat-K

57-60 %

AIL Heat-A

85-88 %

Chemical Properties

Fe2O3

FireCrete Normal

3.5-4.5 %

FireCrete Super

4.5-5.5 %

AIL Heat-C

1.0-1.5 %

AIL Heat-K

1.0-1.3 %

AIL Heat-A

1.2-1.8 %

Chemical Properties

CaO

FireCrete Normal

5.0-6.0 %

FireCrete Super

5.5-6.0 %

AIL Heat-C

4.2-4.8 %

AIL Heat-K

4.0-4.7 %

AIL Heat-A

6.0-6.5 %

Physical & Thermal Properties

Physical & Thermal Properties

Bulk Density (g/cc) after Drying at 1100C/24h

FireCrete Normal

2.10-2.25

FireCrete Super

2.50-2.65

AIL Heat-C

2.10-2.25

AIL Heat-K

2.15-2.25

AIL Heat-A

2.65-2.80

Cold Crushing Strength (kg/cm2):

Cold Crushing Strength (kg/cm2):

After Drying at 1100C/24h

FireCrete Normal

250-350

FireCrete Super

350-450

AIL Heat-C

350-430

AIL Heat-K

350-430

AIL Heat-A

600-700

Cold Crushing Strength (kg/cm2):

After Heating at 11000C/3h

FireCrete Normal

180-280

FireCrete Super

180-280

AIL Heat-C

180-280

AIL Heat-K

180-280

AIL Heat-A

300-400

Cold Crushing Strength (kg/cm2):

After Heating at 14000C/3h

FireCrete Normal

225-325

FireCrete Super

350-470

AIL Heat-C

530-680 at 1500⁰C/3h

AIL Heat-K

350-500

AIL Heat-A

650-800 at 1550⁰C/3h

Physical & Thermal Properties

Permanent Linear Change (%) :

FireCrete Normal

± 0.25 at 1100 ⁰C/3h

± 0.1 at 1350 ⁰C/3h

FireCrete Super

± 0.30 at 1100 ⁰C/3h

± 0.1.5 at 1400 ⁰C/3h

AIL Heat-C

-0.40 to 0.20 at 1100 ⁰C/3h

-1.00 to -2.50 at 1500 ⁰C/3h

AIL Heat-K

-0.40 to 0.20 at 1100 ⁰C/3h

-1.40 to -2.40 at 1550 ⁰C/3h

AIL Heat-A

-0.40 to 0.20 at 1100 ⁰C/3h

-1.00 to -2.50 at 1550 ⁰C/3h

Physical & Thermal Properties

Refractoriness (0C/OC) min.

FireCrete Normal

1564/20

FireCrete Super

1683/31

AIL Heat-C

1665/30

AIL Heat-K

1683/31

AIL Heat-A

1820/37

Physical & Thermal Properties

Max. Service Temperature

FireCrete Normal

1400 ⁰C

FireCrete Super

1450 ⁰C

AIL Heat-C

1500 ⁰C

AIL Heat-K

1600 ⁰C

AIL Heat-A

1700 ⁰C

Physical & Thermal Properties

Water Required for Casting

FireCrete Normal

11-13 %

FireCrete Super

11-13 %

AIL Heat-C

11-13 %

AIL Heat-K

10-12 %

AIL Heat-A

08-10 %

Physical & Thermal Properties

Maxium Grain Size

FireCrete Normal

5 mm

FireCrete Super

5 mm

AIL Heat-C

5 mm

AIL Heat-K

5 mm

AIL Heat-A

5 mm

Physical & Thermal Properties

Installation Methods

FireCrete Normal

Vibration Casting

FireCrete Super

Vibration Casting

AIL Heat-C

Vibration Casting

AIL Heat-K

Vibration Casting

AIL Heat-A

Vibration Casting

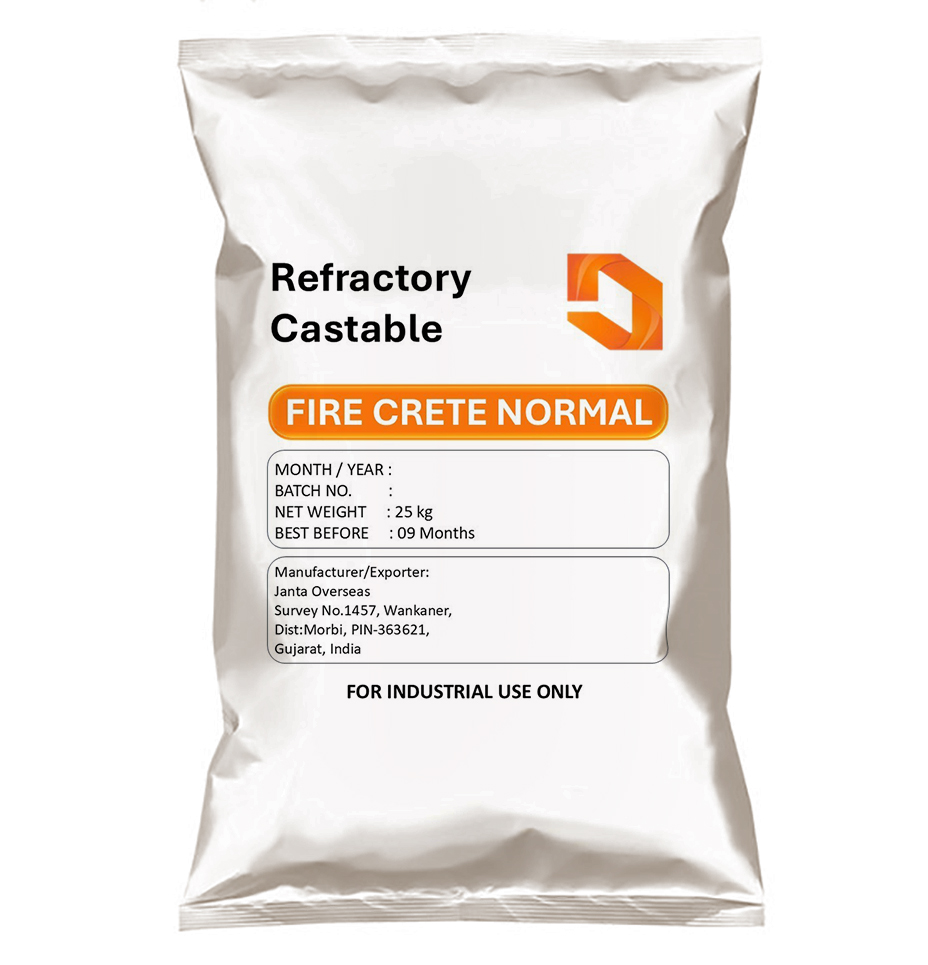

Packaging: 25 kg bags
Delivery State: Dry
Storage Life: Best till 9 months from the date of production, if stored in proper condition.
Note: The data are current production averages. They can not be used as limits for specification
