Portfolio Brief
Refractory Mortar
Janta Overseas is specialized in manufacturing a Refractory Mortar to unify refractory bricks in refractory masonry applications. Refractory Mortar is produced with superior grade raw materials which includes Calcined Fireclay, Andalusite, Calcined Bauxite, Brown Fused Alumina, Silica Sand, Refractory Clays, Kaolins, and various other additives.
We produce a diverse array of air-setting refractory mortars designed to meet the specific requirements associated with high alumina bricks, dense fireclay bricks, and lightweight insulation bricks.

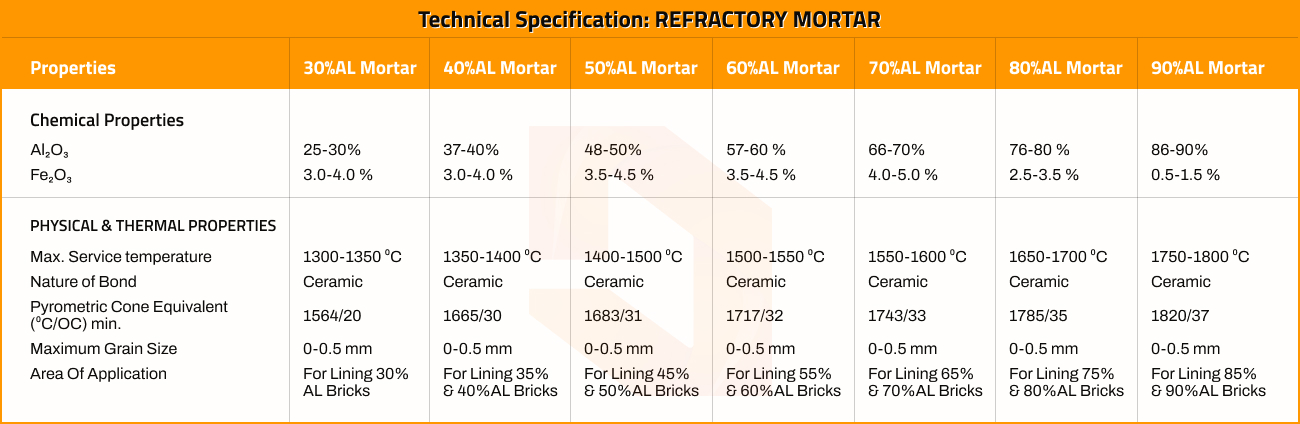

Technical Specification
Refractory Mortar
30%AL Mortar
40%AL Mortar
50% AL Mortar
60% AL Mortar
70% AL Mortar
80% AL Mortar
90% AL Mortar
Chemical Properties
Chemical Properties
Al2O3
30%AL Mortar
25-30 %
40%AL Mortar
37-40%
50% AL Mortar
48-50 %
60% AL Mortar
57-60 %
70% AL Mortar
66-70 %
80% AL Mortar
76-80 %
90% AL Mortar
86-90 %
Chemical Properties
Fe2O3
30%AL Mortar
3.0-4.0 %
40%AL Mortar
3.0-4.0 %
50% AL Mortar
3.5-4.5 %
60% AL Mortar
3.5-4.5 %
70% AL Mortar
4.0-5.0 %
80% AL Mortar
2.5-3.5 %
90% AL Mortar
0.5-1.5 %
Physical & Thermal Properties
Physical & Thermal Properties
Max. Service Temperature
30%AL Mortar
1300-1350 ⁰C
40%AL Mortar
1350-1400 ⁰C
50% AL Mortar
1400-1500 ⁰C
60% AL Mortar
1500-1550 ⁰C
70% AL Mortar
1550-1600 ⁰C
80% AL Mortar
1650-1700 ⁰C
90% AL Mortar
1750-1800 ⁰C
Physical & Thermal Properties
Nature of Bond
30%AL Mortar
Ceramic
40%AL Mortar
Ceramic
50% AL Mortar
Ceramic
60% AL Mortar
Ceramic
70% AL Mortar
Ceramic
80% AL Mortar
Ceramic
90% AL Mortar
Ceramic
Physical & Thermal Properties
Pyrometric Cone Equivalent (0C/OC) min.
30%AL Mortar
1564/20
40%AL Mortar
1665/30
50% AL Mortar
1683/31
60% AL Mortar
1717/32
70% AL Mortar
1743/33
80% AL Mortar
1785/35
90% AL Mortar
1820/37
Physical & Thermal Properties
Maxium Grain Size
30%AL Mortar
0-0.5 mm
40%AL Mortar
0-0.5 mm
50% AL Mortar
0-0.5 mm
60% AL Mortar
0-0.5 mm
70% AL Mortar
0-0.5 mm
80% AL Mortar
0-0.5 mm
90% AL Mortar
0-0.5 mm
Physical & Thermal Properties
Area Of Application
30%AL Mortar
For Lining 30%AL Bricks
40%AL Mortar
For Lining 35% & 40%AL Bricks
50% AL Mortar
For Lining 45% & 50%AL Bricks
60% AL Mortar
For Lining 55% & 60%AL Bricks
70% AL Mortar
For Lining 65% & 70%AL Bricks
80% AL Mortar
For Lining 75% & 80%AL Bricks
90% AL Mortar
For Lining 85% & 90%AL Bricks

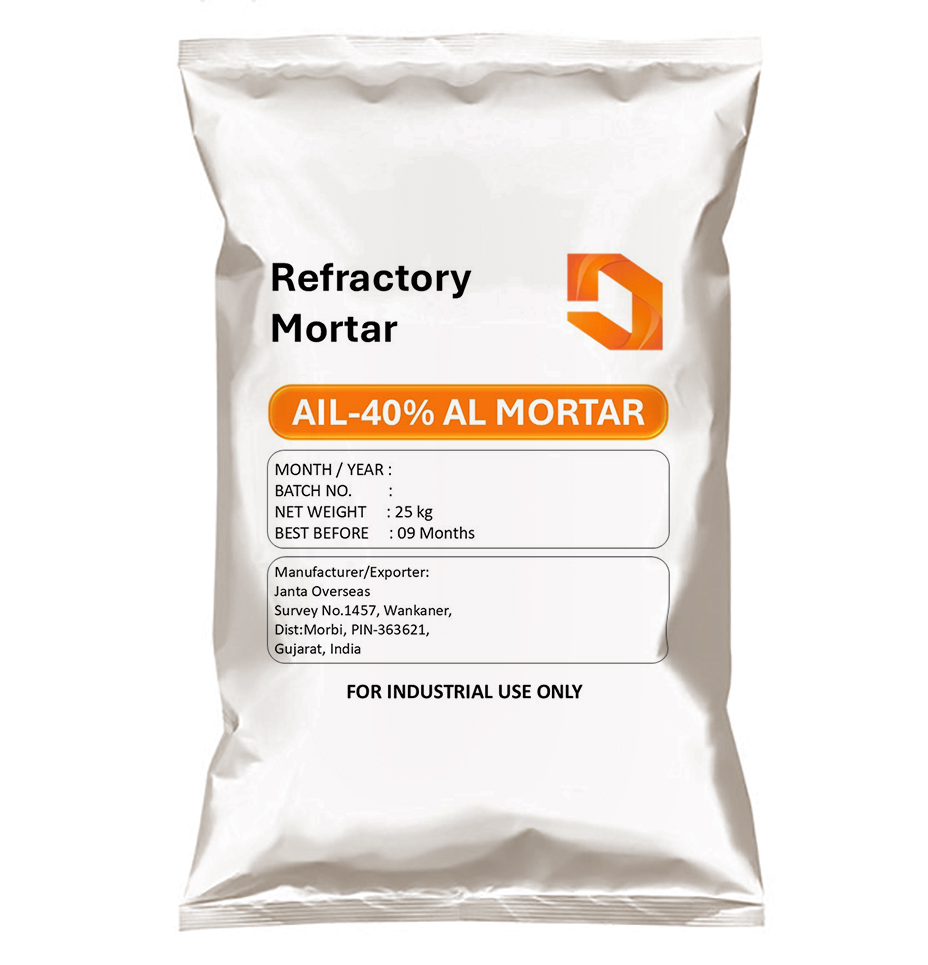

Packaging: 25/50 kg bags
Delivery State: Dry
Storage Life: Best till 9 months from the date of production, if stored in proper condition.
Note: The data are current production averages. They can not be used as limits for specification
Features
- Strong Thermal Shock Resistance
- Abrasion Resistance
- Strong Corrosion Resistance
- Good Workability
- High Refractoriness
Application
- For Refractory Masonry Lining Of High Temperature Industrial Equipment.
- Used To Repair Cracks Or Damages To The Lining Of High-Temperature Equipment.
- Used To Manufacture Refractory Monolithics.
